Case 1: Default Settings

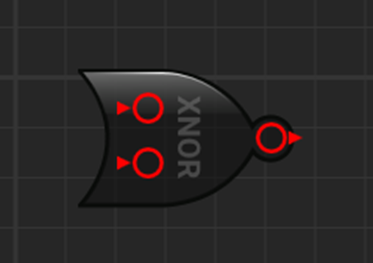

(A) Default Node Style

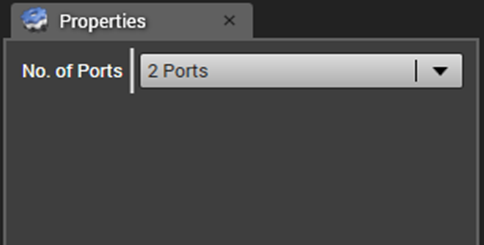

(B) Default Property window

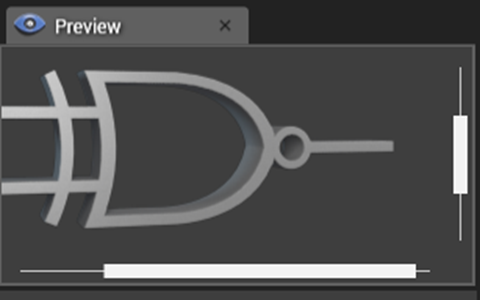

(C) Default Preview Window
Case 1: Testing for Two Ports

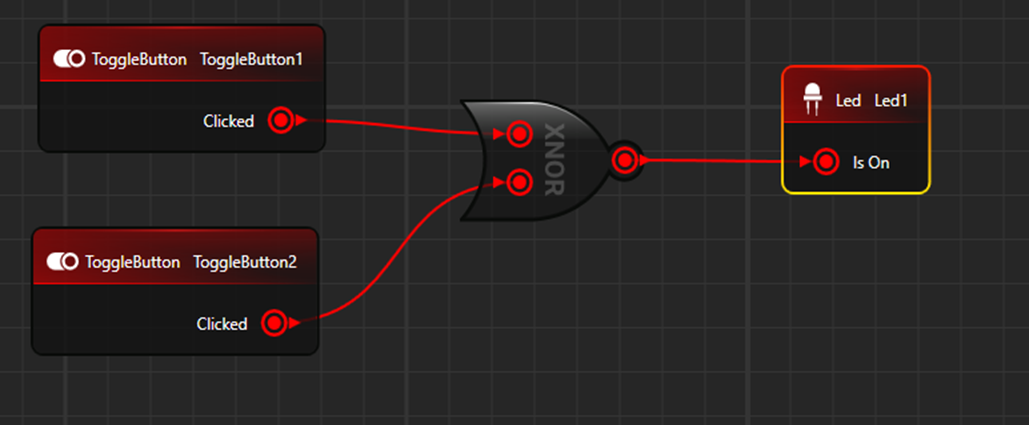

(A) Node Style
(B) Property window

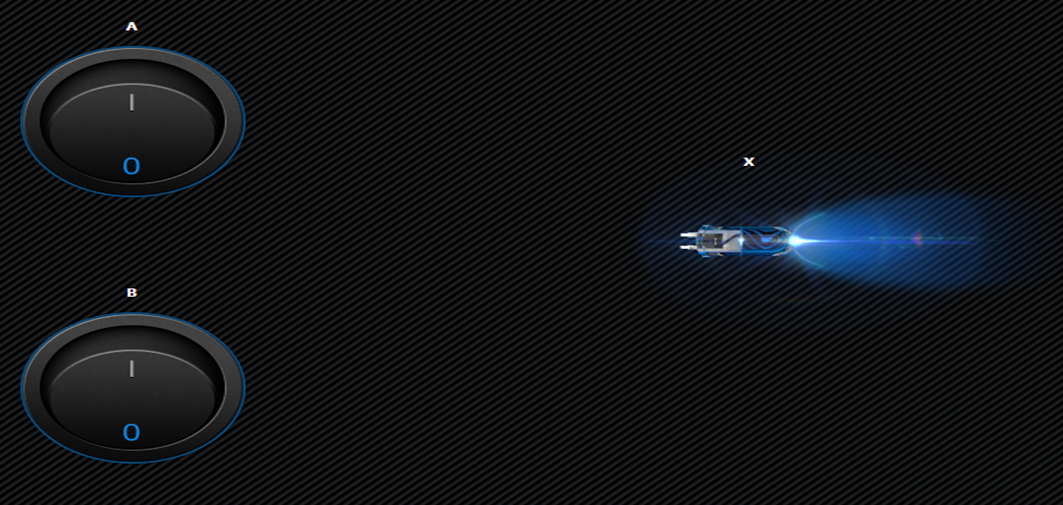

(C) View in HOST

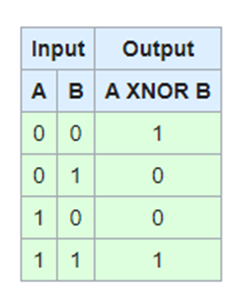

Statement: A high output (1) results if both of the inputs to the gate are the same. If one but not both inputs are high (1), a low output (0) results.

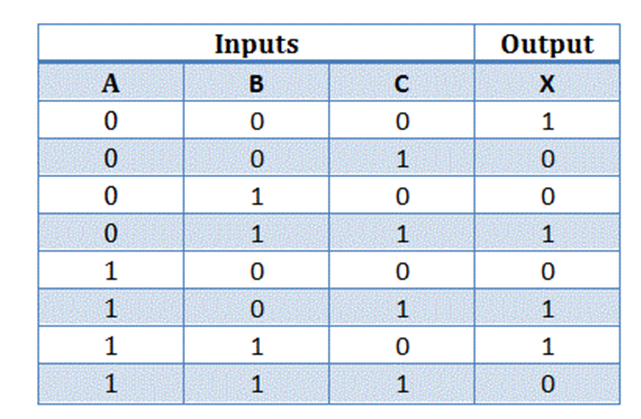

Three Ports

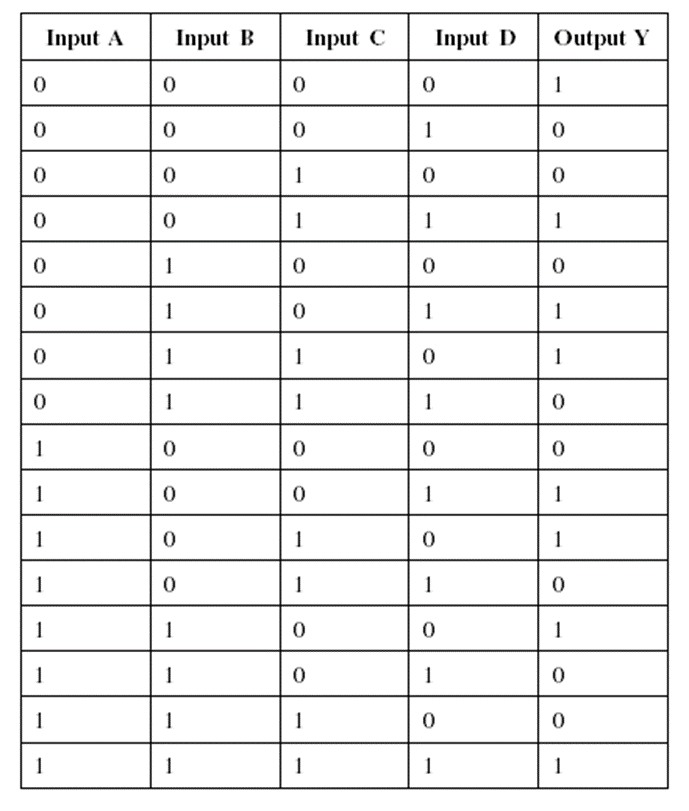

Four Ports
